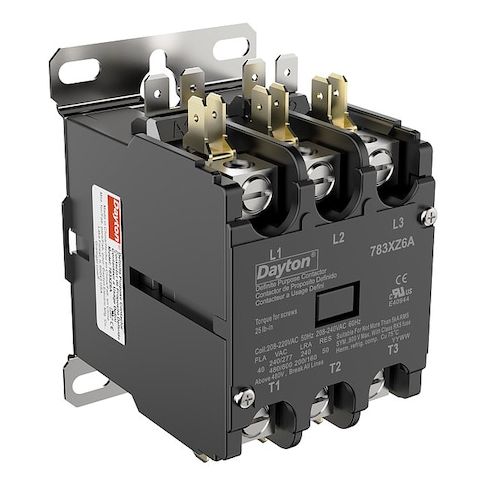

Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Box Lug MPN:783XZ6

The DAYTON - 783XZ6 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Auxiliary Contact Module Capacity: The contactor can control up to 2 additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
• Coil Voltage: Operates within a voltage range of 208V-240V AC which influences its compatibility with different power systems.
• Contact Material: Constructed with Silver Tin Oxide contacts that influence conductivity, durability, and resistance to corrosion.
• Electrical Operating Durability: Has been tested for electrical operation up to 200,000 cycles under standard conditions.
• Full Load Amps-Inductive/Resistive: Rated for continuous control of inductive loads up to 40A and resistive/heating loads up to 50A within specified conditions.
• Horsepower Control Range: Varies depending on single-phase/three-phase power supply voltages ranging from controlling maximum horsepower of 3 hp at single phase -120V AC up to handling maximum motor power capacity of 25 hp at three-phase -600V AC
• Mechanical Operating Durability: Tested for mechanical operation up to 500,000 cycles under standard industrial conditions.
