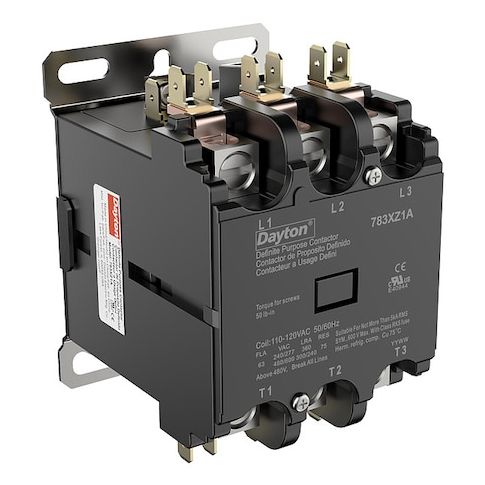

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug MPN:783XZ1
Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug
This Dayton Definite Purpose Magnetic Contactor is a reliable and efficient solution for controlling 3-phase motors in various industrial and commercial applications. With a 120V AC coil voltage and a non-reversing capability, it ensures smooth and consistent motor operation. The contactor's 75A full-load current rating for resistive loads and 63A for inductive loads make it suitable for a wide range of applications, including pump control, conveyor systems, and HVAC equipment. Its compact design and easy installation make it a great choice for new installations or replacements, providing reliable motor control and increasing overall system efficiency.
Top product features:
- Magnetic Contactor provides a non-reversing 3-phase switching function.
- The Contactor has a 120V AC coil voltage.
- The Contactor has a single-phase horsepower rating of 5 hp at 120V AC and 10 hp at 240V AC.
Top product applications:
- Motor control for a 10 HP single-phase 240V AC motor
- Motor control for a 5 HP single-phase 120V AC motor
- Control circuit for a three-phase industrial process
Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 120V AC, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 10 hp, Horsepower @ Single Phase - 120V AC 5 hp, Full Load Current - Resistive 75 A, Full Load Current - Inductive 63 A
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.50
- Package Height: 3.30
- Package Weight: 1.54
Product info last updated on February 16, 2026 9:58pm UTC
Category: Industrial Electrical Controls and Automation
