General Purpose Farm Duty Motor, 3-Phase, 1 HP, 230/460V AC, 1, 755 Nameplate RPM, 143-5T/56HZT Frame MPN:35Z916
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4989302
General Purpose Farm Duty Motor, 3-Phase, 1 HP, 230/460V AC, 1, 755 Nameplate RPM, 143-5T/56HZT Frame

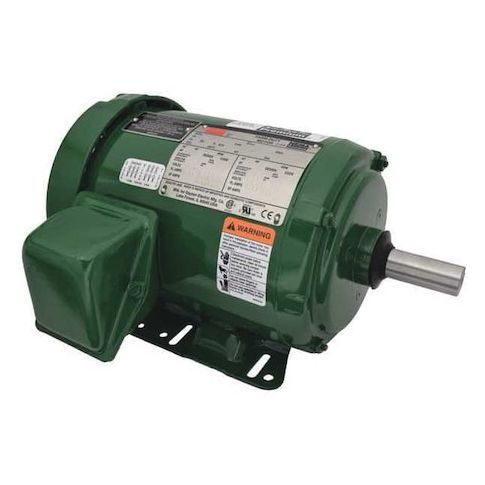

This 1 HP, 3-phase farm duty motor from Dayton is designed for heavy-duty applications in agricultural settings. With a nameplate RPM of 1,755, it provides efficient power for a variety of tasks, including irrigation systems, grain dryers, and other farm equipment. The motor's totally enclosed fan-cooled design ensures reliable operation in harsh environments, while its steel frame and rigid base provide added durability. Suitable for continuous duty cycles, this motor is ideal for farms and agricultural facilities looking for a reliable and efficient power solution. Its compact size and lightweight design also make it easy to install and maintain.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Rigid base mounting for horizontal installation
Top product applications:
- Pump for irrigation systems
- Fans for agricultural ventilation
- Generators for farm power supply
Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143-5T Frame, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.60
- Package Width: 11.40
- Package Height: 10.90
- Package Weight: 39.25
Product info last updated on March 30, 2026 2:25pm UTC
Category: Motors
