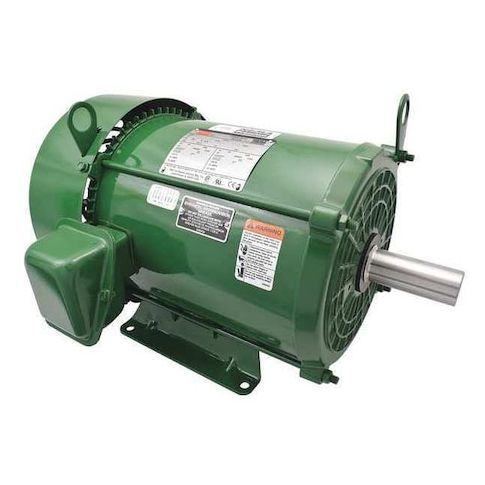

General Purpose Farm Duty Motor, 3-Phase, 10 HP, 230/460V AC, 1, 760 Nameplate RPM, 215T Frame
This 10 HP, 3-phase motor from Dayton is designed for general-purpose farm duty applications. With a nameplate RPM of 1,760 and a 215T frame, it provides reliable power for a variety of uses, including irrigation systems, grain handling equipment, and other agricultural machinery. The motor's totally enclosed fan-cooled design and steel frame ensure durability and long lifespan. Its continuous duty cycle and CW/CCW shaft rotation make it suitable for demanding applications. With a service factor of 1.15 and insulation class F, this motor offers reliable performance in temperatures up to 40°C, making it an ideal choice for farm and agricultural settings.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Totally Enclosed Fan Cooled design provides a safe and reliable operating environment.
- Continuous duty cycle capability enables uninterrupted operation for extended periods.
Top product applications:
- Pumps and irrigation systems
- Conveyors and material handling equipment
- Agricultural machinery and equipment
Farm Duty Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 24.0/12.0 A, 215T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 23.00
- Package Height: 18.50
- Package Weight: 175.00
