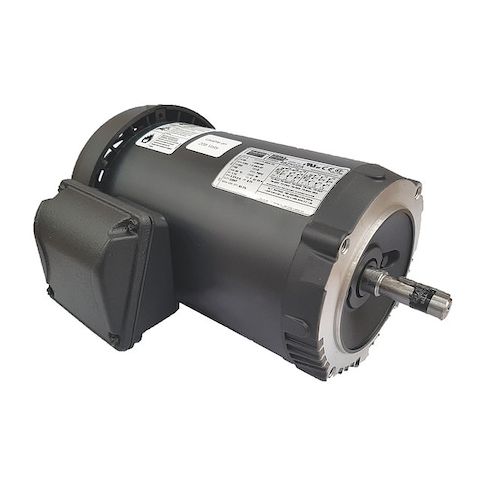

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1765 Nameplate RPM MPN:48ZK02
Free Shipping
In Stock
Upgrade your industrial operations with the Dayton 1 HP Three-Phase General Purpose Motor, designed for demanding applications. This reliable motor features a totally enclosed fan-cooled enclosure, 85.5% nominal efficiency, and continuous duty operation. With a maximum ambient temperature of 40°C and CW/CCW motor shaft rotation, it's perfect for a wide range of applications, including pumps, fans, and conveyor systems. The motor's 1.15 service factor and ball bearings ensure long-lasting performance. Suitable for use in harsh environments, this motor meets CE, CSA, and UL standards, making it an ideal choice for industries requiring high-quality, reliable power.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pumps and fans in industrial settings
- Compressors and air conditioning units
- Conveyor belts and other machinery
The DAYTON - 48ZK02 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed for industrial and commercial use in power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.
Key Features of the DAYTON - 48ZK02 General Purpose Motor:
- CC Number: The unique identifier assigned by EASA for tracking based on design, specifications, and performance characteristics.
- Duty Cycle: Intended for continuous operation within the specified conditions, based on design and specifications.
- Frame: A standard size 56C frame that houses and supports the internal parts of the motor.
- Full Load Amps: Rated to draw a maximum current of 2.94/1.47 A under full load conditions as per product specifications.
- Inverter Rated: Compatible with variable frequency drives as per product specifications, which may allow control over speed and torque
- Motor Bearings: Equipped with ball bearings intended to minimize friction between moving parts according to design parameters.
- Motor Enclosure Design: Features a totally enclosed fan-cooled design intended to shield internal components from certain environmental factors according to product specifications.
- Motor Mounting Position & Type: All angle mounting position with C-Face type ensures compatibility with different industrial machinery
- Nameplate RPM & No. Of Speeds : Specified for an operational speed of 1765 RPM under full load condition with one defined speed setting as per product details.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 40.00
