Aeration Fan Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 3, 450 Nameplate RPM, 56Z Frame MPN:4K056BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4700529

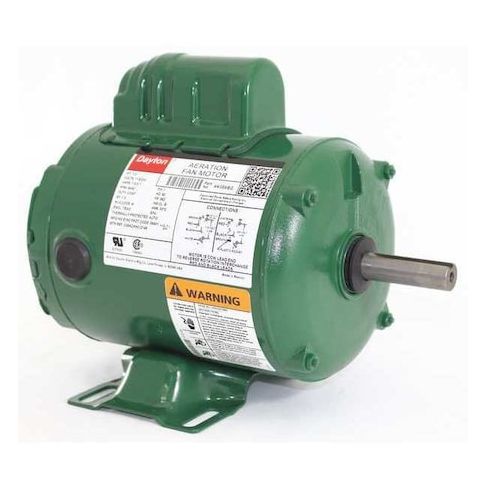

Aeration Fan Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 3, 450 Nameplate RPM, 56Z Frame
This high-performance aeration fan motor from Dayton is designed for demanding farm duty applications, providing reliable and efficient operation. With a 1/2 HP rating and 3,450 RPM, it's ideal for large-scale ventilation systems, greenhouses, and agricultural settings. The capacitor-start design and rugged 56Z frame ensure long motor life and durability. The motor's totally enclosed air-over design and steel construction make it resistant to dust and moisture, while the auto thermal protection and Class B insulation provide added safety and reliability. Perfect for continuous operation, this motor is a reliable choice for demanding applications.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design provides protection from dust and debris.
- 1/2 HP Motor Design delivers sufficient power for moderate applications.
- 56Z Frame Motor Design allows for rigid base mounting in various positions.
Top product applications:
- Aeration systems for greenhouses and nurseries
- Pumping systems for irrigation and water treatment
- Ventilation systems for industrial and commercial buildings
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.4/3.7 A, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 19.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 13, 2026 7:48am UTC
Category: Motors
