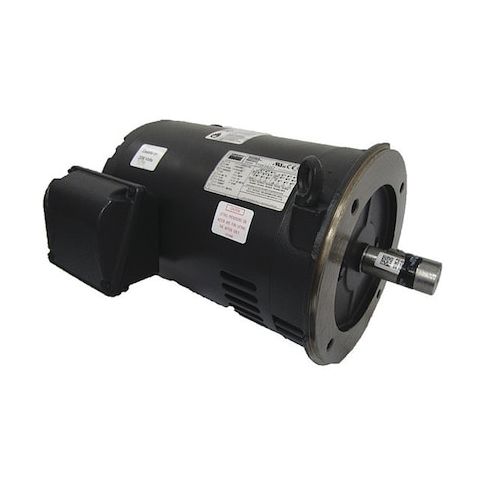

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1750 Nameplate RPM MPN:11W342
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4182866
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1750 Nameplate RPM
The Dayton 3-Phase General Purpose Motor is a reliable and efficient solution for a wide range of industrial applications. With a 3 HP rating and 1750 nameplate RPM, this motor is perfect for use in manufacturing, pumping, and conveyor systems. Its open drip proof enclosure design and steel frame ensure durability and resistance to harsh environments. The motor's high efficiency and continuous duty rating make it an ideal choice for applications that require consistent performance. Suitable for use in 230/460V AC systems, this motor is a great option for any industry that requires a reliable and efficient motor solution.
Top product features:
- Three-phase operation for efficient power usage
- Open drip-proof motor enclosure design for protection against moisture and dust
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Automation
- Pump and Fan Applications
- Conveyor and Material Handling Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1750, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.3/4.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.10
- Package Width: 17.30
- Package Height: 16.00
- Package Weight: 83.00
Product info last updated on February 28, 2026 1:40am UTC
Category: Motors
