Washdown Mtr, Cap Strt, TEFC, 1/2hp, 1745rpm MPN:11G252
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4144183

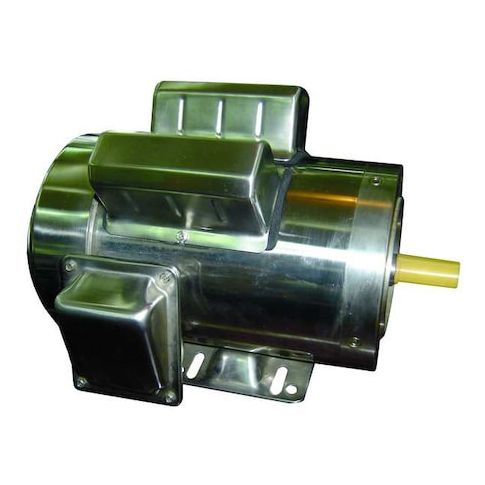

Washdown Mtr, Cap Strt, TEFC, 1/2hp, 1745rpm
This 1/2 horsepower washdown motor from Dayton is designed for use in harsh environments, featuring a Totally Enclosed Fan Cooled (TEFC) design and a Class F insulation rating for maximum reliability. Its capacitor-start/run design provides efficient operation and long lifespan. Suitable for continuous duty cycles, this motor is ideal for applications in food processing, pharmaceuticals, and other industries where cleanliness and durability are paramount. With a wide voltage range and 1,745 RPM nameplate speed, this motor offers flexibility and versatility in a compact 56HC frame, making it an excellent choice for a variety of washdown applications.
Top product features:
- Totally Enclosed Fan Cooled design for enhanced durability and protection
- Continuous duty cycle for uninterrupted operation
- Capacitor-Start/Run motor design for efficient and reliable performance
Top product applications:
- Washdown applications in food processing facilities
- Pump and conveyor systems in manufacturing plants
- Water treatment and chemical processing plants
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.0/2.6-2.5 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.10
- Package Width: 12.00
- Package Height: 11.90
- Package Weight: 35.95
- Restricted States: CA
Product info last updated on February 17, 2026 6:34am UTC
Category: Motors
