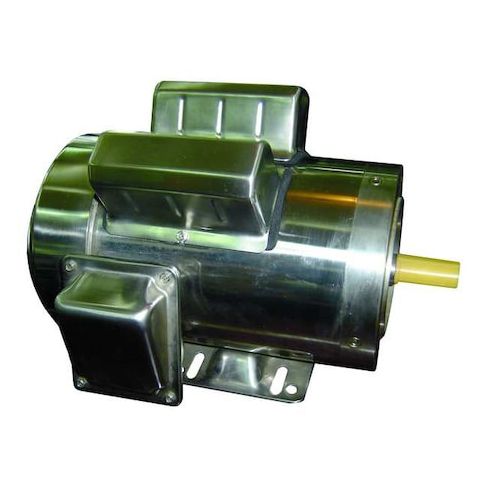

Capacitor-Start/Run Washdown Motor, 2 hp HP, 56HC Frame, 208-230V AC Voltage MPN:11G257
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4039341
Capacitor-Start/Run Washdown Motor, 2 hp HP, 56HC Frame, 208-230V AC Voltage
This 2 hp Capacitor-Start/Run Washdown Motor from Dayton is designed for use in harsh environments, such as food processing and pharmaceutical manufacturing. Its totally enclosed fan-cooled design and IP rating ensure reliable operation in wet and corrosive conditions. The motor's single-phase design and capacitor-start/run configuration provide efficient power delivery and reduced maintenance. Suitable for continuous duty cycles, this motor is ideal for applications such as pumps, conveyor systems, and mixers, where reliability and durability are paramount. Its compact 56HC frame and 1,745 RPM nameplate speed make it a versatile solution for a variety of washdown applications.
Top product features:
- Totally Enclosed Fan Cooled motor design
- Capacitor-Start/Run motor design for efficient operation
- Continuous duty cycle capability
Top product applications:
- Food Processing Equipment
- High Pressure Cleaning Equipment
- Chemical Processing Equipment
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 9.9-8.5 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 10.40
- Package Height: 10.40
- Package Weight: 57.05
- Restricted States: CA
Product info last updated on February 24, 2026 8:24am UTC
Category: Motors
