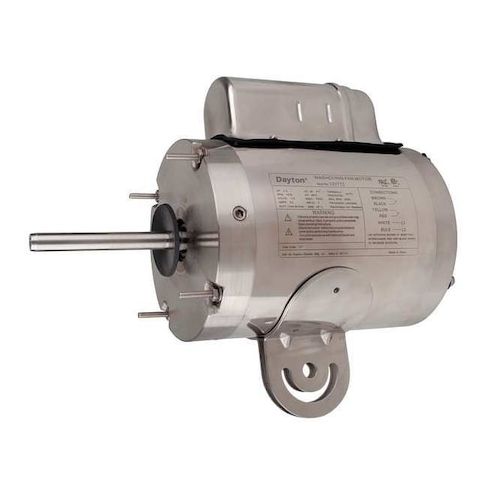

WashdownMotor, 1/4hp, 1075RPM, 48YZ, 115VAC MPN:12V772
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4020344
WashdownMotor, 1/4hp, 1075RPM, 48YZ, 115VAC
This 1/4 HP washdown motor from Dayton is designed for use in harsh environments and features a totally enclosed air-over design to protect against dust and water. With a nameplate RPM of 1,075 and a continuous duty cycle, it's ideal for applications such as food processing, chemical plants, and pharmaceutical manufacturing. The motor's capacitor-start/run design provides efficient operation and long lifespan. Its compact size and lightweight design make it easy to install and maintain. Suitable for use in ambient temperatures up to 40°C, this motor is a reliable and efficient solution for a variety of industrial applications.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure for protection from environmental factors
- Single Phase Motor Design with Capacitor-Start/Run for efficient operation
- Continuous Duty Cycle Capability for long-term operation without overheating
Top product applications:
- Food Processing Equipment
- Pumps and Piping Systems
- Packaging Machinery
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.5 A, 48YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 10.30
- Package Height: 10.70
- Package Weight: 19.85
- Restricted States: CA
Product info last updated on February 3, 2026 3:40pm UTC
Category: Motors
