Capacitor-Start/Run Washdown Motor, 2 hp HP, 56HC Frame, 208-230V AC Voltage MPN:11G256
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4010054

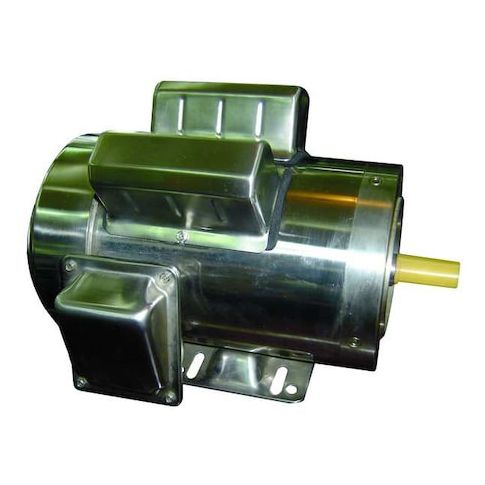

Capacitor-Start/Run Washdown Motor, 2 hp HP, 56HC Frame, 208-230V AC Voltage
This 2 hp capacitor-start/run washdown motor is designed for use in harsh environments where high pressure washdowns are frequent. Its totally enclosed fan-cooled design and Class F insulation ensure reliable operation in temperatures up to 40°C. The motor's single-phase, capacitor-start/run design provides efficient operation and long motor life. Suitable for applications such as food processing, pharmaceutical manufacturing, and other industries requiring high sanitation standards, this motor meets NEMA Design B standards and is available for immediate shipment. Its compact 56HC frame and continuous duty cycle make it an ideal choice for demanding applications.
Top product features:
- Totally Enclosed Fan Cooled design for protection from dust and water
- Continuous duty cycle operation for uninterrupted use
- Capacitor-Start/Run motor design for efficient and reliable performance
Top product applications:
- Packaging machinery
- Food processing equipment
- Pharmaceutical manufacturing equipment
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 8.9-7.9 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 11.90
- Package Height: 12.00
- Package Weight: 55.10
- Restricted States: CA
Product info last updated on April 19, 2026 8:00am UTC
Category: Motors
