Washdown Mtr, Cap Strt, TEFC, 3/4hp, 1745rpm MPN:11G244
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3986376
Washdown Mtr, Cap Strt, TEFC, 3/4hp, 1745rpm

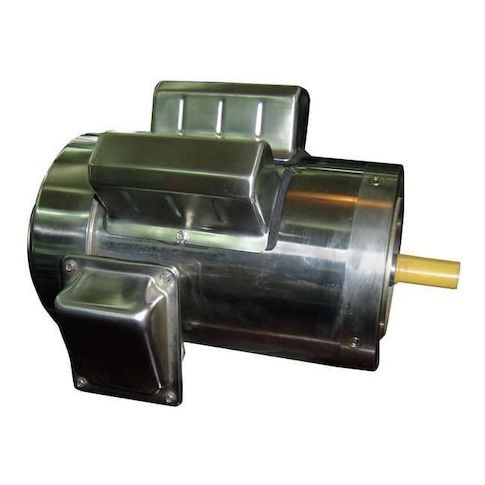

This 3/4 horsepower washdown motor from Dayton is designed for harsh environments and continuous operation. Its totally enclosed fan-cooled (TEFC) design provides reliable performance in wet and corrosive conditions, making it ideal for use in food processing, pharmaceutical, and chemical manufacturing facilities. The motor's capacitor-start/run design and 1.75 RPM nameplate speed ensure efficient operation and consistent performance. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding applications and provide years of trouble-free service. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Totally Enclosed Fan Cooled design for increased protection and durability
- Single Phase motor design for simplified installation and operation
- Continuous duty cycle for reliable and uninterrupted performance
Top product applications:
- Pump applications
- Cleaning equipment
- Food processing machinery
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.6/4.0-3.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.40
- Package Width: 11.70
- Package Height: 12.00
- Package Weight: 37.85
- Restricted States: CA
Product info last updated on February 2, 2026 12:28am UTC
Category: Motors
