Washdown Mtr, Cap Strt, TEFC, 3/4hp, 1745rpm MPN:11G253
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3980383

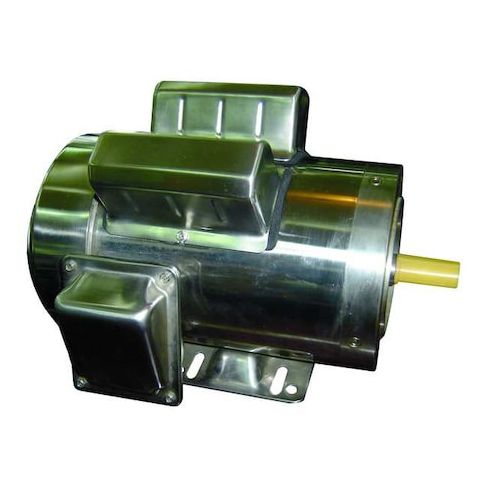

Washdown Mtr, Cap Strt, TEFC, 3/4hp, 1745rpm
This 3/4 horsepower washdown motor from Dayton is designed for use in harsh environments where exposure to water and moisture is a concern. Its totally enclosed fan-cooled (TEFC) design and Class F insulation ensure reliable operation in temperatures up to 40°C. Ideal for use in food processing, pharmaceutical, and other industries where cleanliness is critical, this motor provides continuous duty cycle operation and is available in single-phase configurations. Its compact size and CW/CCW rotation make it suitable for a wide range of applications, including pumps, conveyors, and mixers.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Motor Design Capacitor-Start/Run for efficient starting and running performance
- Continuous Duty Cycle capability for reliable operation in demanding applications
Top product applications:
- Water Treatment Plants
- Chemical Processing Plants
- Food Processing Facilities
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.6/4.0-3.8 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.30
- Package Width: 11.90
- Package Height: 12.10
- Package Weight: 39.00
- Restricted States: CA
Product info last updated on February 24, 2026 7:06am UTC
Category: Motors
