Washdown Mtr, Cap Strt, TEFC, 1 HP, 1745 rpm MPN:11G245
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3904031

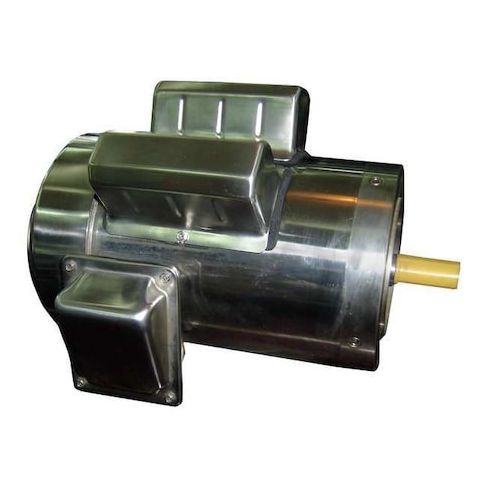

Washdown Mtr, Cap Strt, TEFC, 1 HP, 1745 rpm
This Dayton Washdown Motor is designed for use in harsh environments where high pressure washdowns are required. With a single-phase capacitor-start/run design, it provides reliable operation in applications such as food processing, pharmaceutical manufacturing, and chemical plants. The motor's totally enclosed fan-cooled (TEFC) design and Class F insulation ensure durability and long lifespan. It can operate at 115/208-230V AC and 60 Hz, making it suitable for a wide range of applications. The motor's 1 HP output and 1,745 RPM make it ideal for use in pumps, conveyors, and other machinery that require high torque and speed.
Top product features:
- Totally Enclosed Fan Cooled design
- Capacitor-Start/Run motor design
- Continuous duty cycle
Top product applications:
- Food processing equipment
- Pump and conveyor systems
- Packaging machinery
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.2/5.8-5.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 11.80
- Package Height: 12.00
- Package Weight: 43.05
- Restricted States: CA
Product info last updated on January 22, 2026 5:45am UTC
Category: Motors
