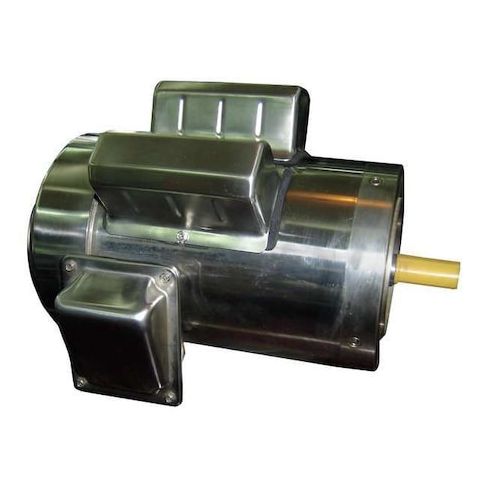

Capacitor-Start/Run Washdown Motor, 2 hp HP, 56C Frame, 208-230V AC Voltage, 1, 745 RPM Nameplate RPM MPN:11G248
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3898361
Capacitor-Start/Run Washdown Motor, 2 hp HP, 56C Frame, 208-230V AC Voltage, 1, 745 RPM Nameplate RPM
This 2 hp, 56C frame capacitor-start/run washdown motor is designed for use in harsh environments where high pressure washing is required. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation in temperatures up to 40 degrees C. With a continuous duty cycle and single phase operation, this motor is ideal for applications such as food processing, pharmaceutical manufacturing, and chemical plants. Its compact size and low weight make it easy to install and maintain, reducing downtime and increasing productivity. Suitable for use in areas with 208-230V AC voltage, this motor is a reliable solution for washdown applications.
Top product features:
- Totally Enclosed Fan Cooled design for protection against washdown and harsh environments
- Single Phase motor design for simplified installation and reduced complexity
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Food Processing Machinery
- Pharmaceutical Equipment
- Chemical Processing Equipment
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 9.9-8.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.90
- Package Width: 11.80
- Package Height: 12.00
- Package Weight: 54.75
- Restricted States: CA
Product info last updated on March 13, 2026 4:52pm UTC
Category: Motors
