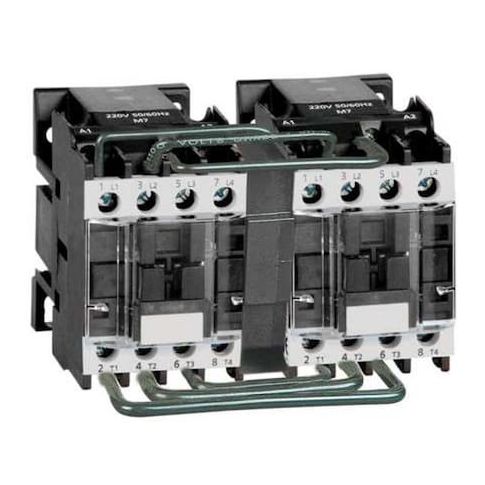

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Reversing, Screw MPN:6EAX1

• The DAYTON IEC Magnetic Contactor is an IEC-style, three-pole electrical switch rated for operation with a 120 V AC coil. It includes one normally open auxiliary contact (1NO). The unit does not include surge suppression features, does not have an enclosure or NEMA rating, and it uses screw terminal connections with a 50/60 Hz rating.

  - Coil Voltage: 120 V AC

• - Action: Rated for switching operations with reversing capability
• - Poles: 3
• - Auxiliary contacts: 1NO (Form 1NO)
• Includes Auxiliary Contacts: Yes
• - Terminal connections: Screw
• - Enclosure/NEMA rating: Does not have an enclosure or NEMA rating
• - Frequency: 50/60 Hz
• - Full Load Amps: Rated for resistive loads up to 32 A and inductive loads up to 18 A within specified conditions
• - HP ratings (by voltage/phase): Listed horsepower ratings are based on standard testing conditions at specified voltages and phases
• actual performance may vary depending on application conditions
• - Overall dimensions: 4.17 in W × 4.17 in H × 3.4 in D
• - Standards: UL Listed
