Tubeaxial Fan w/ Drive Pkg, 230/460 V MPN:7J382
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3603564
Tubeaxial Fan w/ Drive Pkg, 230/460 V

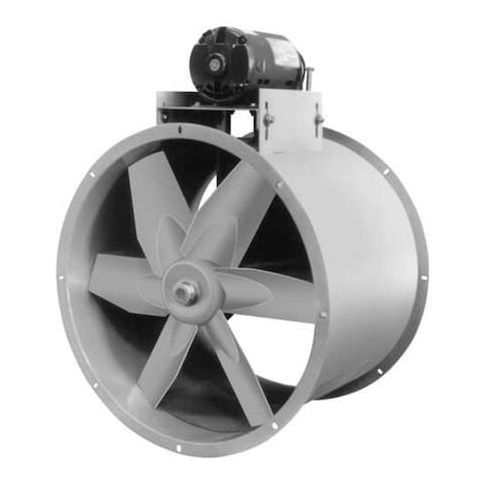

The Dayton Tubeaxial Fan with Drive Package is a high-performance solution for emergency smoke ventilation applications. This 10 horsepower fan features a 48-inch blade diameter and produces 38,100 cubic feet per minute of airflow, making it ideal for large spaces. The totally enclosed fan-cooled motor ensures reliable operation in harsh environments. With a maximum noise level of 112 sones, this fan is designed for use in areas where noise must be minimized. Suitable for use in commercial and industrial settings, this fan is a reliable choice for emergency smoke ventilation, providing a safe and efficient solution for building occupants.
Top product features:
- Tubeaxial fan design allows for airflow of 38,100 cfm
- Totally Enclosed Fan Cooled motor enclosure design provides a safe and efficient cooling system
- Belt drive design enables a single speed operation for consistent airflow
Top product applications:
- Emergency Smoke Ventilation
- Industrial Process Ventilation
- High-Volume Air Exchange in Large Spaces
Tubeaxial Fan, Drive Type Belt Drive, Includes Drive Package Yes, Includes Motor Yes, Blade Diameter 48 in, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 10 hp, Airflow @ 0.000 in SP 38,100 cfm, Maximum Noise Level @ 5 Feet 112 sones, Assembly Unassembled, For Air Type Emergency Smoke, Blade Material Steel, Housing Material Steel, Number of Blades 5, Number of Speeds 1, Motor Enclosure Totally Enclosed Fan Cooled, Standards AMCA, Bolt Circle Diameter 50 1/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
- Restricted States: CA
Product info last updated on February 3, 2026 1:26pm UTC
Category: Fans
