IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Reversing, Screw MPN:6EAW5
Free Shipping
In Stock

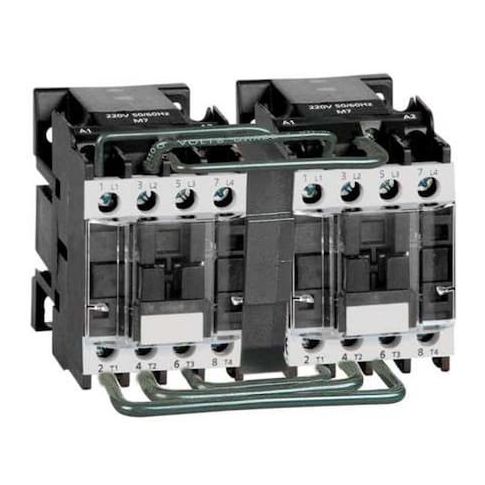

The DAYTON IEC Magnetic Contactor is a versatile and reliable solution for controlling electrical loads in various applications. Designed for operation with a 120 V AC coil, this 3-pole, reversing-type contactor is ideal for use in standard control panel configurations. Its compact dimensions and screw terminal connection type make it easy to integrate into new or existing systems. The contactor's reversing capability and auxiliary contacts enable efficient control of motors, pumps, and other loads, while its UL Listed certification ensures compliance with industry standards. Suitable for a range of applications, including industrial automation, HVAC, and power distribution systems.
Top product features:
- Reversing capability: rated for reversing operations within the device's specifications
- 1NO auxiliary contact for control and monitoring purposes
- 3-pole design for handling multiple load types and configurations
Top product applications:
- HVAC systems
- Motor control circuits
- Industrial automation applications
The DAYTON IEC Magnetic Contactor is a 3-pole, reversing-type IEC magnetic contactor rated for operation with a 120 V AC coil within specified parameters. It is designed to operate with a 120 V AC coil
- compatible with specified load types. The unit has dimensions of approximately 4.13 in W x 4.13 in H x 3.18 in D
- intended for use in standard control panel configurations.
- Poles: 3
- - Auxiliary contacts: 1 NO
- - Auxiliary contact form: 1 NO
- - Coil voltage: 120 V AC
- - Enclosure: No Enclosure
- - Embedded surge suppressor: No
- - Frequency: 50/60 Hz
- - Standards: UL Listed
- - Terminal connection type: Screw
- - Dimensions: 4.13 in W x 4.13 in H x 3.18 in D
- - Reversing capability: rated for reversing operations within the device's specifications
- - Auxiliary contacts are included
- compatibility should be verified based on application requirements
- - Full load amps (inductive): Rated for full load current of up to 9 A (inductive) under specified conditions
- - Full load amps (resistive): Rated for resistive loads up to 20 A within specified parameters
- - HP @ 1 Phase - 120V: 1/2 hp (power ratings are based on standard testing conditions
- actual performance may vary depending on application)
- - HP @ 1 Phase - 230V: 1 hp (power ratings are based on standard testing conditions
- actual performance may vary depending on application)
- - HP @ 1 Phase - 240V: 1 hp (power ratings are based on standard testing conditions
- actual performance may vary depending on application)
- - HP @ 3 Phase - 208V: 2 hp (power ratings are based on standard testing conditions
- actual performance may vary depending on application)
- - HP @ 3 Phase - 240V: 2 hp (power ratings are based on standard testing conditions
- actual performance may vary depending on application)
- - HP @ 3 Phase - 480V: 5 hp (power ratings are based on standard testing conditions
- actual performance may vary depending on application)
- - HP @ 3 Phase - 575V: 7 1/2 hp (power ratings are based on standard testing conditions
- actual performance may vary depending on application)
- - Hz: 50/60
