Capacitor-Start Belt Drive Motor, 3/4 HP, 115/230V AC Voltage, 56 Frame, 1, 725 Nameplate RPM MPN:6K376
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3498616
Capacitor-Start Belt Drive Motor, 3/4 HP, 115/230V AC Voltage, 56 Frame, 1, 725 Nameplate RPM

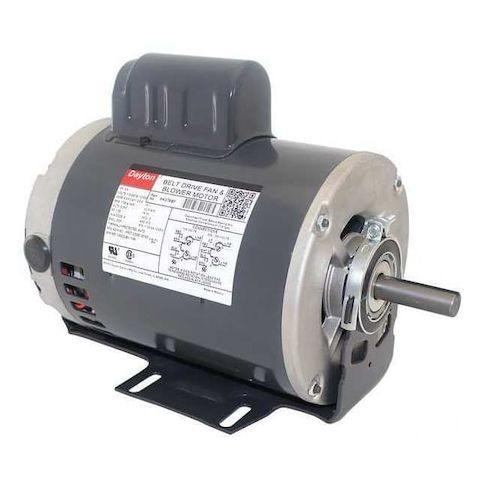

The Dayton 6K376 Capacitor-Start Belt Drive Motor is a highly efficient and versatile solution for various industrial applications. Designed for belt drive systems, this 3/4 HP motor operates at 1,725 nameplate RPM and is compatible with 115/230V AC voltage. Featuring a cradle base mounting type and ball bearings for enhanced efficiency and lifespan, it also includes auto thermal protection and a continuous duty cycle for optimal performance in high-demand settings. Suitable for use in compressors, pumps, and other machinery, this motor meets CSA and UL standards for quality, safety, and efficiency, making it an ideal choice for a wide range of industrial applications.
Top product features:
- Voltage compatibility with 115/230V AC electrical input.
- Motor Service Factor: 1.25 indicating the capacity at which the motor can operate over standard output without overheating.
- Ball bearings enhancing operational efficiency and lifespan.
Top product applications:
- Air Compressor
- Conveyor Systems
- Pumps
The DAYTON - 6K376 is a Capacitor Start AC Motor, specifically designed as a Belt Drive Motor. This type of motor uses a belt to transfer rotational motion from one shaft to another, making it an essential component in various industrial machinery systems due to its efficiency and versatility.Key features include:
• Voltage compatibility with 115/230V AC electrical input.
• Motor Service Factor: 1.25 indicating the capacity at which the motor can operate over standard output without overheating.
• Motor Enclosure Design: Open Dripproof providing better cooling but less protection.
• Cradle Base Mounting Type for secure installation onto compressors.
• Mountable at All Angle positions.
• Ball bearings enhancing operational efficiency and lifespan.
• Auto Thermal Protection preventing overheating by automatically shutting down when excessive heat is detected.
• Max Ambient Temp.: 104 Degrees F for optimal function in diverse settings.
• Nominal Efficiency of 68.3% ensuring effective removal of contaminants from air.
• Continuous Duty Cycle allowing non-stop run for optimal efficiency in high-demand settings.
• Compliant with CSA Certified (258501), UL Recognized (E37403) standards ensuring quality, safety, and efficiency.
• Voltage compatibility with 115/230V AC electrical input.
• Motor Service Factor: 1.25 indicating the capacity at which the motor can operate over standard output without overheating.
• Motor Enclosure Design: Open Dripproof providing better cooling but less protection.
• Cradle Base Mounting Type for secure installation onto compressors.
• Mountable at All Angle positions.
• Ball bearings enhancing operational efficiency and lifespan.
• Auto Thermal Protection preventing overheating by automatically shutting down when excessive heat is detected.
• Max Ambient Temp.: 104 Degrees F for optimal function in diverse settings.
• Nominal Efficiency of 68.3% ensuring effective removal of contaminants from air.
• Continuous Duty Cycle allowing non-stop run for optimal efficiency in high-demand settings.
• Compliant with CSA Certified (258501), UL Recognized (E37403) standards ensuring quality, safety, and efficiency.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 31.00
Product info last updated on February 22, 2026 12:58am UTC
Category: Motors
