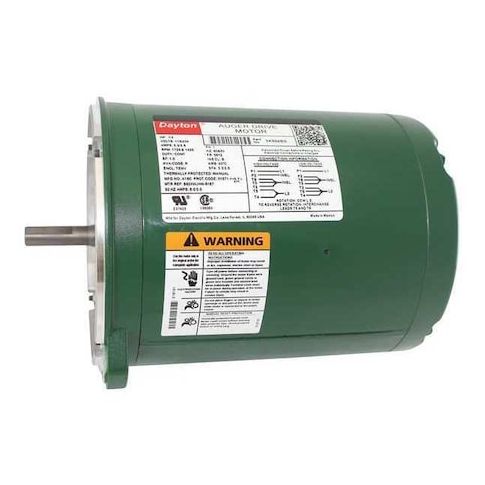

Auger Drive Motor, Split-Phase, 1/3 HP, 115/230V AC, 1, 725 Nameplate RPM, 56YZ Frame MPN:3K994
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3490977
Auger Drive Motor, Split-Phase, 1/3 HP, 115/230V AC, 1, 725 Nameplate RPM, 56YZ Frame
This 1/3 HP, 115/230V AC motor from Dayton is designed for farm duty applications, offering a reliable and efficient solution for a variety of tasks. With a nameplate RPM of 1,725 and a 56YZ frame, this motor is built to withstand heavy use and harsh environments. Its split-phase design provides a smooth and quiet operation, making it ideal for applications such as irrigation systems, feed processing, and grain handling. The motor's continuous duty cycle and CW/CCW rotation ensure versatility, while its totally enclosed non-ventilated design protects against dust and moisture.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design
- Continuous duty cycle
- C-Face motor mounting type
Top product applications:
- Pumps and irrigation systems for agricultural use
- Conveyor systems for material handling in manufacturing and warehousing
- Sewing machines and embroidery equipment for the textile industry
Farm Duty Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.2/2.6 A, 56YZ Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 23.64
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 6, 2026 7:21pm UTC
Category: Motors
