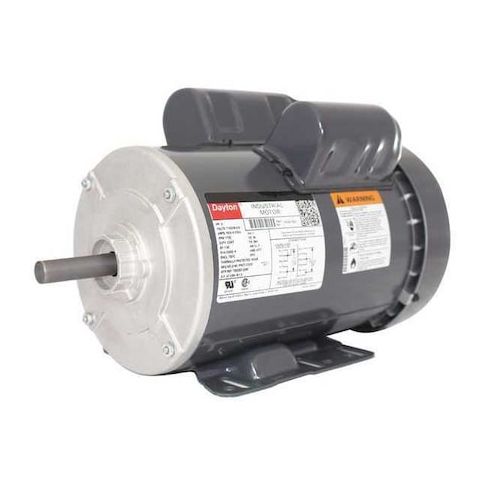

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56H Frame MPN:1K067BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3485447
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56H Frame
This 2 hp single-phase motor is designed for a wide range of applications, including industrial equipment, pumps, and fans. Its capacitor-start/run design provides efficient operation and long motor life. The motor's totally enclosed fan-cooled (TEFC) design and Class F insulation ensure reliable performance in harsh environments. Suitable for continuous duty cycles, this motor is ideal for use in factories, warehouses, and other industrial settings. Its compact 56H frame makes it easy to install in tight spaces, while its CW/CCW rotation flexibility allows for versatile mounting options. This motor meets the demands of heavy-duty applications with its robust design and durable construction.
Top product features:
- Capacitor-start/run design provides efficient starting and running performance
- Totally enclosed fan-cooled design protects the motor from dust and moisture
- Usable at 208V allows for flexibility in voltage usage
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment plants
- Compressors and air conditioning units
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 18.9/10.3-9.4 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 19, 2026 8:44pm UTC
Category: Motors
