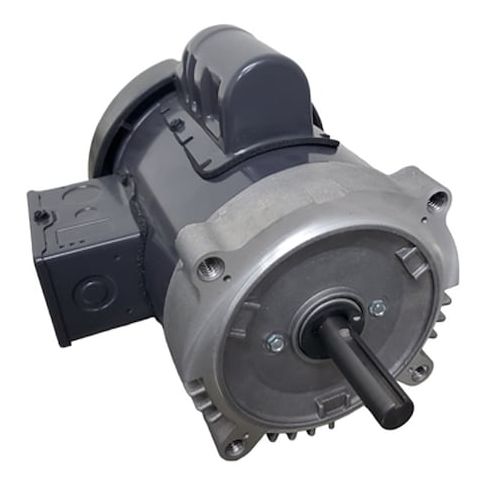

Capacitor-Start General Purpose Motor, 1/4 hp HP, 56C Frame, 120/208-240V AC Voltage MPN:6K975
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3417933
Capacitor-Start General Purpose Motor, 1/4 hp HP, 56C Frame, 120/208-240V AC Voltage
This 1/4 hp capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase, 120/208-240V AC voltage motor operates at 1,725 RPM, making it suitable for applications where high speed and efficiency are required. The motor's totally enclosed fan-cooled design provides reliable operation in harsh environments, while its keyed shaft and C-face mounting type ensure secure and easy installation. With a service factor of 1.35 and a maximum ambient temperature of 40 degrees C, this motor is ideal for continuous duty cycles in various industries, including manufacturing, material handling, and more.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor reliability and durability
- Keyed motor shaft for secure and precise mounting of accessories
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pumps and water treatment systems
- Fans and blowers for ventilation and air conditioning systems
- Power tools and equipment for woodworking and metalworking applications
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 120/208-240V AC, Full Load Amps 5.6/2.8-2.7 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 18.38
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 6, 2026 11:31pm UTC
Category: Motors
