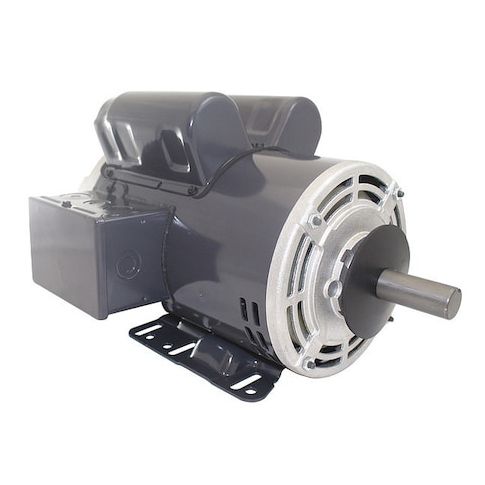

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 145T Frame
This 3 hp Capacitor-Start/Run General Purpose Motor from Dayton is a versatile and reliable solution for a wide range of applications. Suitable for use in various industries, including manufacturing, material handling, and HVAC, this motor provides efficient and quiet operation. Its open drip-proof design and continuous duty cycle make it ideal for applications with high usage and exposure to the elements. With a maximum ambient temperature of 40 degrees C and a service factor of 1.15, this motor offers high performance and durability. Its compact size and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Capacitor-start/run design for efficient operation
- Single-phase operation for use in a variety of applications
- CW/CCW motor shaft rotation for flexibility in mounting and installation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 25.0/12.5 A, 145T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 43.18
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
