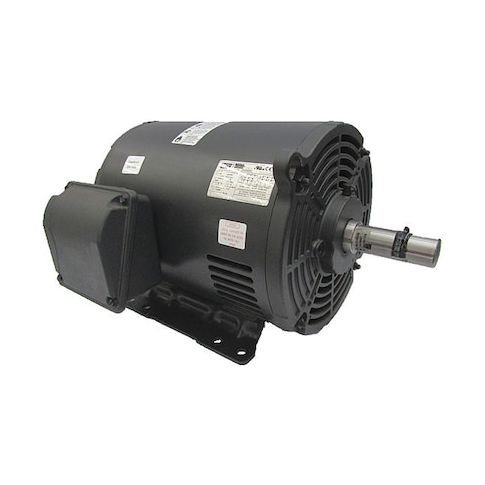

Three-Phase General Purpose Motor, 10 HP, 254/6U Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This Dayton 10 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial settings. Its robust construction and high efficiency make it an ideal choice for continuous duty operation. With a nameplate RPM of 1,770 and a voltage range of 230/460V AC, this motor can handle demanding tasks with ease. Its open drip-proof enclosure design and rigid base motor mounting ensure reliable operation and easy installation. Suitable for applications such as conveyor systems, pumps, and fans, this motor offers a cost-effective solution for businesses looking to boost productivity and efficiency.
Top product features:
- Three-phase operation provides efficient power distribution and usage.
- Ball bearings ensure smooth and quiet motor operation.
- CW/CCW motor shaft rotation allows for flexible installation and configuration.
Top product applications:
- Pumping systems
- Industrial textile machinery
- Printing presses
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 1,770, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.7/12.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 22.00
- Package Height: 18.00
- Package Weight: 219.00
