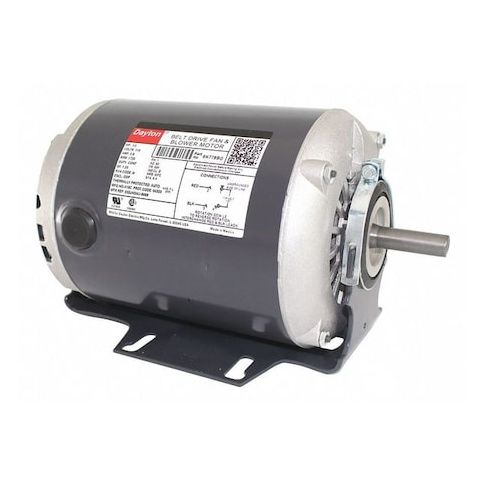

Split-Phase Belt Drive Motor, 1/3 HP, 48 Frame, 115V AC Voltage, 1, 725 Nameplate RPM MPN:6K778
Free Shipping
In Stock
The Dayton 6K778 Split-Phase Belt Drive Motor is a reliable and efficient power transmission device suitable for residential and light commercial use. Its 1/3 HP, 115V AC voltage, and 1725 nameplate RPM provide precise control and smooth power delivery. With a high motor service factor of 1.35, this motor offers extra power when needed. It's ideal for applications such as HVAC systems, conveyor belts, and packaging machinery, requiring continuous duty cycles and non-stop operation. The motor's open drip-proof design and cradle base mounting type ensure secure installation and optimal performance in various industrial settings, including factories and warehouses.
Top product features:
- Nameplate RPM of 1725 allowing precise control over performance
- Motor Service Factor of 1.35 offering extra power when needed
- Auto Thermal Protection preventing overheating by automatic shutdown
Top product applications:
- Residential use
- Light commercial use
- Industrial applications
The DAYTON - 6K778 is a Belt Drive Motor, a power transmission device that uses a belt to transfer rotational motion from one shaft to another. This motor is designed for optimal performance and longevity in various industrial applications, providing smooth and controlled power delivery. It operates on single-phase power supply with voltage compatibility ranging from 115V AC to 230V AC, making it suitable for both residential and light commercial use.
Key features of the DAYTON - 6K778 include:
• Nameplate RPM of 1725 allowing precise control over performance
• Voltage requirement being 115V AC for optimal operation
• A high Motor Service Factor of 1.35 offering extra power when needed
• Motor Enclosure Design being Open Dripproof providing better cooling but less protection against dust and moisture
• Cradle Base as the Motor Mounting Type for secure installation
• Motor Mounting Position flexibility with All Angle option available
• Ball type motor bearings are used within the motor enhancing operational efficiency
• Auto Thermal Protection preventing overheating by automatic shutdown
• Maximum Ambient Temperature tolerance up to 104 Degrees F ensuring efficient operation in diverse settings
• Continuous Duty Cycle allowing non-stop operation without overheating
• UL Component Recognition (E37403) & CSA Certification (258501) standards compliance
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 15.83
