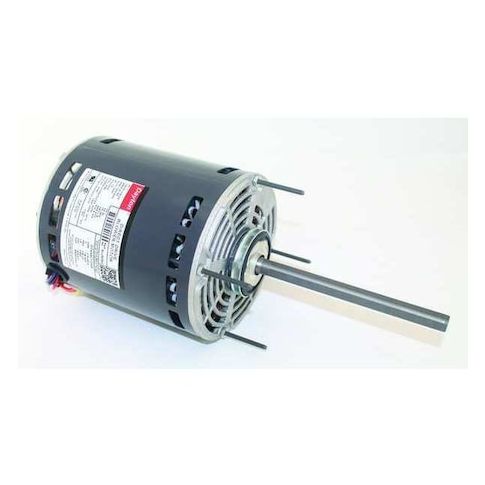

Motor, 1hp, D/D Blower MPN:3LU90
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3348791
Motor, 1hp, D/D Blower
The Dayton 1hp D/D Blower Motor is a reliable and efficient solution for a variety of applications, including industrial ventilation, HVAC systems, and commercial air circulation. With its permanent split capacitor design and single-phase operation, this motor provides consistent performance and durability. Its 3-speed operation and 1,625 RPM nameplate speed make it suitable for a range of applications, from low- to high-velocity air movement. The motor's open air over design and resilient ring mounting ensure easy installation and maintenance, while its continuous duty cycle and 40°C maximum ambient temperature rating make it ideal for demanding environments.
Top product features:
- Permanent Split Capacitor motor design provides a compact and efficient operation.
- Three speeds allow for adjustable airflow and flexibility in applications.
- Continuous duty cycle enables the motor to operate for extended periods without overheating.
Top product applications:
- HVAC System
- Industrial Fan System
- Laboratory Exhaust System
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 208-230V AC, 6.0-6.8 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud, Motor Mounting Position All Angle, Shaft Length 6 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 18.80
Product info last updated on February 6, 2026 12:55am UTC
Category: Motors
