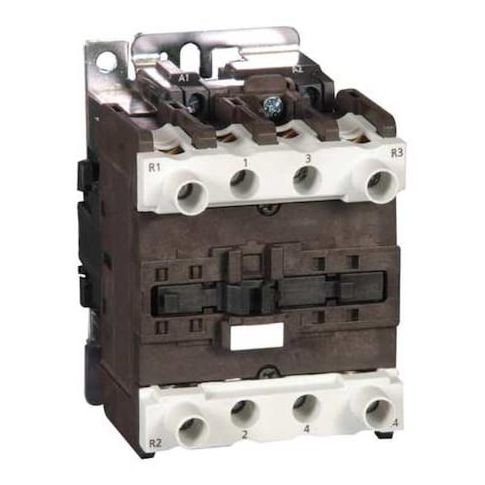

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 4 P, Non-Reversing, Screw MPN:6EAZ0

• The DAYTON IEC Magnetic Contactor is an electrically operated switch rated for use in IEC-standard control panels. It is a 4-pole, non-reversing device with a 240 V AC coil and screw terminal connections. The unit has no enclosure specified and is rated for operation within the specified frequency range of 50/60 Hz. It is built in the IEC style and conforms to standard contact configuration specifications.

  Key features

• - Action: Non-Reversing
• - Coil Voltage: 240 V AC
• - Contactor Style: IEC
• - Poles: 4
• - Terminal Connection Type: Screw
• - Enclosure: No Enclosure
• - Frequency: 50/60 Hz
• - Full Load Amps — Inductive: 40 A
• Resistive: 60 A
• - HP @ 1 Phase — 120V: 3 hp
• 230V: 5 hp
• 240V: 5 hp
• - Main Contact Configuration: 2NC/2NO
• - Includes Auxiliary Contacts: Yes
• Number of Auxillary Contacts: 4
• - Normally Closed Main Contacts: 2
• - Normally Open Main Contacts: 2
• - Standards: CSA, UL Listed
• - Dimensions (approximate): Depth 4.6 in
• Height 2.95 in
• Width 2.95 in
