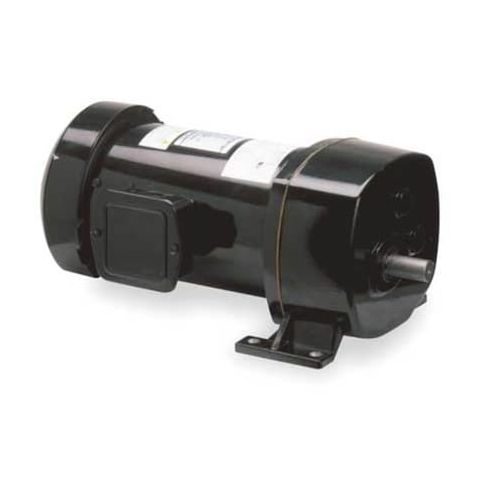

DC Gearmotor, 822 in-lb Max. Torque, 34 RPM Nameplate RPM, 90V DC Voltage MPN:6Z414
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3329636
DC Gearmotor, 822 in-lb Max. Torque, 34 RPM Nameplate RPM, 90V DC Voltage
This heavy-duty DC gearmotor provides reliable and efficient power for a wide range of applications, including material handling, packaging, and automation. With a maximum torque of 822 in-lb and a gear ratio of 50:1, it can handle demanding loads and provide precise control. Its permanent magnet DC motor and totally enclosed fan-cooled design ensure long lifespan and minimal maintenance. The motor can be mounted at any angle and is suitable for applications requiring rotation in both clockwise and counterclockwise directions. Its compact size and robust construction make it an ideal solution for various industrial and commercial uses.
Top product features:
- Totally Enclosed Fan-Cooled Motor Enclosure
- Heavy Duty Ball and Thrust Balls on Case
- 50:1 Gear Ratio for High Torque and Low RPM Output
Top product applications:
- Automotive applications such as window lifts and seat adjusters
- Material handling equipment like conveyor belts and sortation systems
- Medical equipment like hospital beds and patient lifts
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Fan-Cooled, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 34 RPM, Maximum Torque 822 in-lb, Overhung Load Capacity 325 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Gear Ratio 50:1, Input Horsepower 1/2 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 9.90
- Package Height: 8.90
- Package Weight: 34.60
Product info last updated on February 5, 2026 7:07pm UTC
Category: Motors
