Washdown Motor, 3 Ph, TEFC, 1 HP, 1165 rpm MPN:4GPT1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3313344

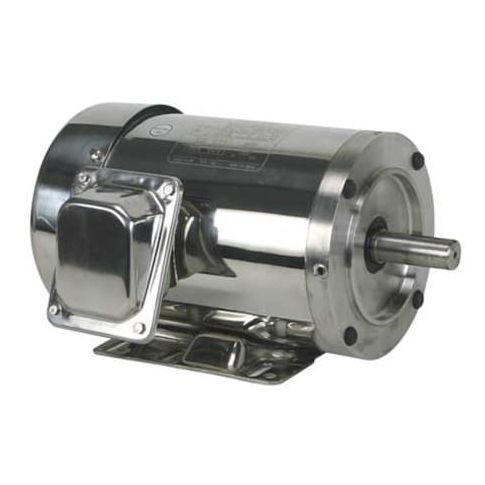

Washdown Motor, 3 Ph, TEFC, 1 HP, 1165 rpm
This 1 HP, 3-phase washdown motor from Dayton is designed for use in harsh environments, with a totally enclosed fan-cooled (TEFC) design that protects against water and dust. Ideal for applications in food processing, pharmaceuticals, and other industries where cleanliness is crucial, this motor operates at 1165 rpm and can be used at 208V, making it a versatile solution for a variety of tasks. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor is built to withstand demanding conditions, ensuring continuous operation and reducing downtime.
Top product features:
- Totally Enclosed Fan Cooled design for protection from environmental elements
- Continuous duty cycle operation for extended periods of use
- Nameplate RPM of 1165 for high-speed performance
Top product applications:
- Food Processing Machinery
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,165 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.0/2.0 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 10.80
- Package Height: 9.30
- Package Weight: 42.20
Product info last updated on March 19, 2026 10:50am UTC
Category: Motors
