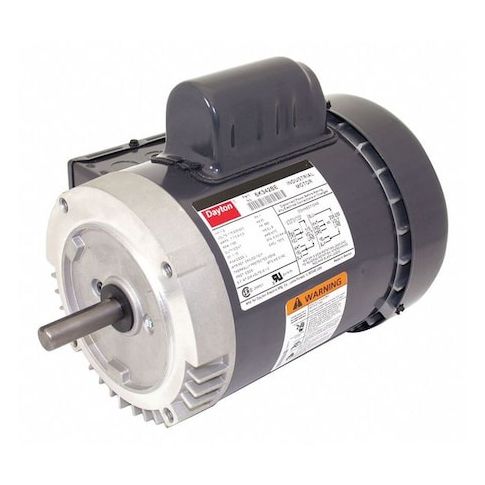

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:6K342
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3296903
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
This Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for various applications requiring 1/2 horsepower. Suitable for use in a wide range of environments, from 115 to 230V AC voltage, it can be used in applications such as pumps, fans, and conveyors. The motor's totally enclosed fan-cooled design and 1.15 service factor ensure continuous operation in temperatures up to 40°C. Its compact 56C frame and C-face mounting make it easy to integrate into existing systems, providing a cost-effective and efficient solution for industrial and commercial applications.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient operating environment.
- Single Phase, Capacitor-Start motor design allows for reliable and efficient operation in a variety of applications.
- Keyed motor shaft ensures secure and precise mounting of the motor to other components.
Top product applications:
- Pump applications for water or chemical services
- Conveyor systems for light to medium duty applications
- Fans and blowers for general ventilation and air circulation
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.7/3.9-3.9 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 25.94
