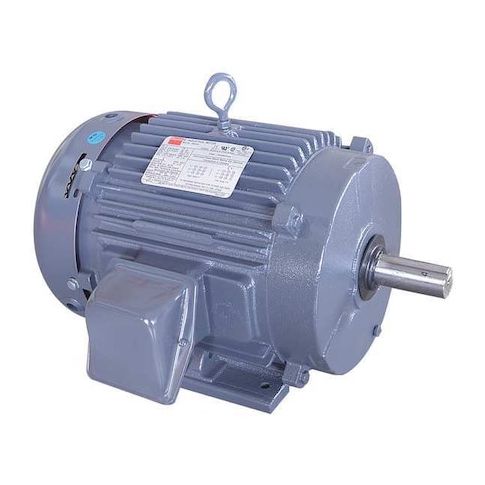

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3505 Nameplate RPM MPN:194152.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3290217
Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3505 Nameplate RPM
This 10 HP three-phase general purpose motor from Dayton is designed for heavy-duty applications in industrial settings. With a totally enclosed fan-cooled motor enclosure, it provides reliable operation in harsh environments. The motor's 90.2% nominal efficiency and 1.15 service factor ensure high performance and durability. Suitable for continuous duty, it's ideal for applications such as conveyor systems, pumps, and fans. The motor's rigid base mounting type and cast iron frame provide stability and strength. With CSA, UL, and CE certifications, it meets global safety and quality standards, making it a reliable choice for a wide range of industrial applications.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pump and compressor applications
- Industrial machinery and equipment
- Material handling and conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3505, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.0/11.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 18.50
- Package Height: 16.00
- Package Weight: 215.00
Product info last updated on February 2, 2026 10:39am UTC
Category: Motors
