Universal AC/DC Mtr, 1hp, 10, 000 RPM, 115V MPN:2M191
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3287252

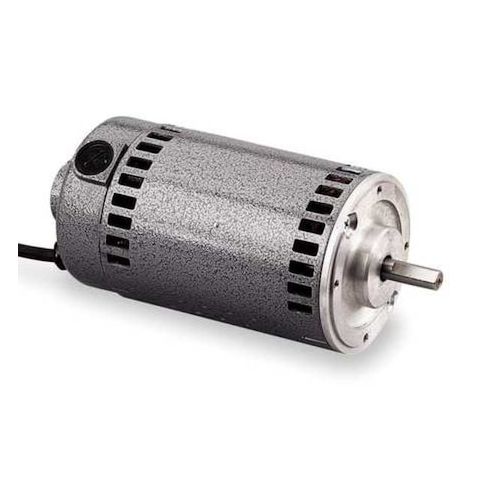

Universal AC/DC Mtr, 1hp, 10, 000 RPM, 115V
This versatile 1hp universal AC/DC motor is designed for a wide range of applications, including industrial, laboratory, and research settings. With a high speed of 10,000 RPM and a single-phase design, it provides efficient and reliable operation. Suitable for use in environments with a maximum ambient temperature of 40°C, this motor features a non-standard frame and can be mounted in any position. Its compact size and open enclosure make it ideal for applications where space is limited. Perfect for tasks that require high speed and torque, this motor is an excellent choice for various industries and projects.
Top product features:
- Operates at 10,000 RPM
- Has a single phase motor design
- Rotates in a counterclockwise direction
Top product applications:
- Automotive Windshield Wiper Motor
- Industrial Automation and Robotics
- Medical Device Manufacturing
Universal AC/DC Motor, Single Phase, 1 HP, Nameplate RPM 10,000 RPM, No. of Speeds 1, 115V AC Voltage, Full Load Amps 12.1 A, Non-Standard Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open, Motor Mounting Type Face, Motor Mounting Position All Angle, Finish Unfinished, Shaft Dia. 7/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 10.20
Product info last updated on February 2, 2026 8:53am UTC
Category: Motors
