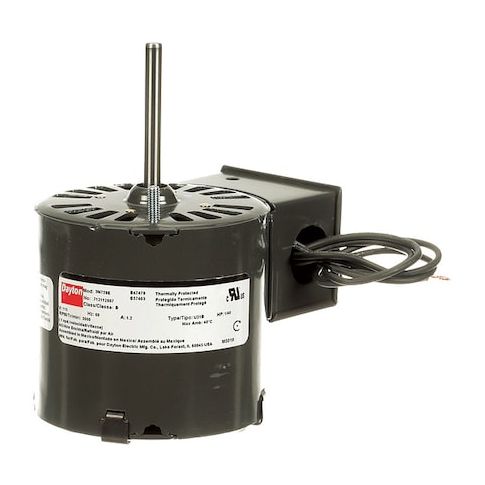

HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3 MPN:712112807M
HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3
This 1/40 HP, 3000 rpm, 115V, single-phase HVAC motor from Dayton is designed for reliable operation in various applications. Ideal for use in residential and commercial settings, it offers continuous duty cycle and operates within a maximum ambient temperature of 40 degrees C. The motor's shaded pole design provides efficient performance, while its open air over enclosure and stud mounting type ensure easy installation. With a compact steel frame and auto thermal protection, this motor is suitable for applications such as fans, blowers, and other low-power HVAC equipment, providing a reliable and efficient solution for your needs.
Top product features:
- Operates at 3000 rpm
- Has a single phase motor design
- Has motor thermal protection
Top product applications:
- Air Conditioning Unit
- Exhaust Fan
- Duct Heater
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 1.2 A Full Load Amps, 3.3 Frame, Output Watts 19 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 4.90
- Package Height: 5.30
- Package Weight: 2.70
Product info last updated on March 3, 2026 10:01am UTC
Category: Motors
