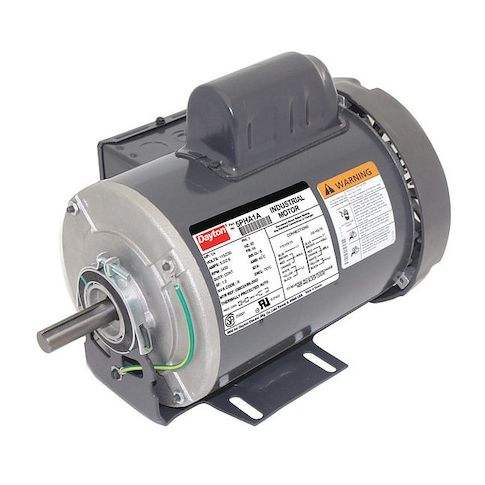

Capacitor-Start General Purpose Motor, 1/4 hp HP, 56 Frame, 115/230V AC Voltage MPN:5PHA1A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3269813
Capacitor-Start General Purpose Motor, 1/4 hp HP, 56 Frame, 115/230V AC Voltage
This 1/4 hp Capacitor-Start General Purpose Motor from Dayton is a reliable and efficient solution for a wide range of applications, including industrial machinery, HVAC systems, and commercial equipment. Its single-phase design and totally enclosed fan-cooled (TEFC) enclosure provide protection from dust and moisture, while its continuous duty cycle and motor thermal protection ensure reliable operation. With a nameplate RPM of 3,450 and a maximum ambient temperature of 40°C, this motor can handle demanding tasks and harsh environments. Its compact size and cradle base mounting make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Single Phase motor design allows for simple and cost-effective operation.
- Keyed motor shaft ensures secure and precise mounting of accessories.
Top product applications:
- Pump
- Conveyor
- Fan
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.2/2.6 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 17.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 7, 2026 1:04pm UTC
Category: Motors
