Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1, 725 Nameplate RPM MPN:1YAZ7BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3244701

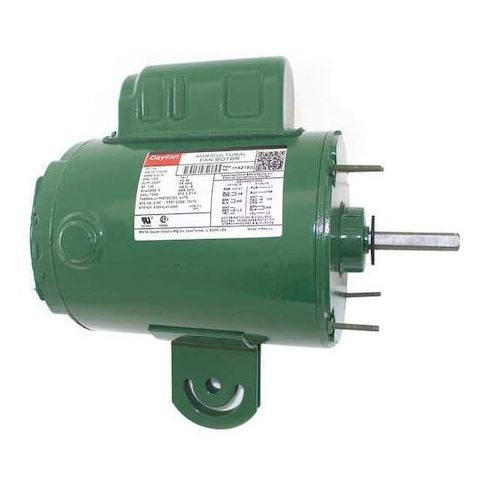

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1, 725 Nameplate RPM
This Agricultural Fan Motor from Dayton is a reliable and efficient solution for farming and agricultural applications. Its permanent split capacitor design and 1/4 HP rating make it perfect for powering small to medium-sized fans, blowers, and ventilation systems. With a nameplate RPM of 1,725 and a single-phase motor design, this motor provides consistent performance and long-lasting durability. Its totally enclosed air-over design and steel frame ensure protection from harsh environments and heavy use. Suitable for continuous duty cycles, this motor is ideal for greenhouses, barns, and other agricultural settings where reliable ventilation is crucial.
Top product features:
- Permanent Split Capacitor design
- Totally Enclosed Air-Over motor enclosure
- Continuous duty cycle
Top product applications:
- Ventilation in greenhouses
- Drying crops after harvesting
- Providing airflow in animal enclosures
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.3/1.4 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 9.50
- Package Height: 11.10
- Package Weight: 18.09
Product info last updated on February 10, 2026 7:06pm UTC
Category: Motors
