GP Mtr, Split Ph, TEFC, 1/8 HP, 1140 rpm, 48 MPN:6XJ01
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3231207

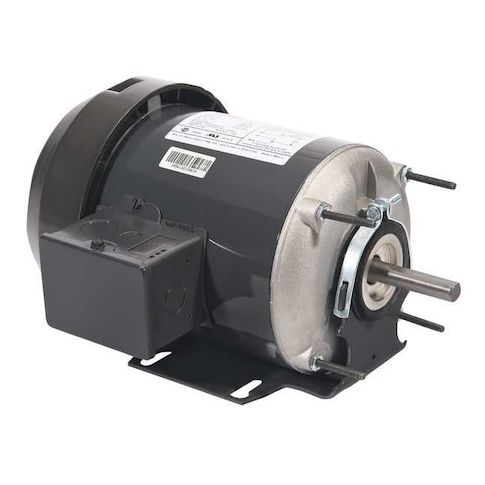

GP Mtr, Split Ph, TEFC, 1/8 HP, 1140 rpm, 48
The Dayton 1/8 HP, 1140 rpm, 48 frame, split-phase, TEFC motor is a reliable and efficient solution for a variety of applications. Ideal for use in residential and commercial settings, this motor is perfect for fans, pumps, and other low-power equipment. With a continuous duty cycle and a maximum ambient temperature of 40 degrees C, it can withstand demanding operating conditions. The totally enclosed fan-cooled design provides excellent protection from dust and moisture, while the steel frame ensures durability and long lifespan. Order now and take advantage of fast shipping and competitive pricing.
Top product features:
- Totally Enclosed Fan Cooled design
- Single Phase operation
- Continuous Duty Cycle capability
Top product applications:
- Pump applications for small systems or residential areas
- Conveyor systems for light to moderate loads
- Fans for small commercial or residential spaces
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/8 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.5 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 14.87
Product info last updated on February 12, 2026 7:25am UTC
Category: Motors
