Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:6K358BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3196873

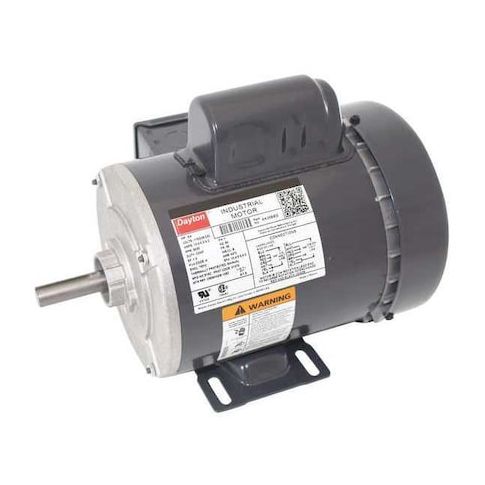

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame
This 3/4 hp capacitor-start general purpose motor from Dayton is a reliable and efficient solution for a variety of applications. Suitable for use in single-phase systems, it operates at 3,450 RPM and is designed for continuous duty cycles. The motor's totally enclosed fan-cooled design ensures optimal performance and longevity, even in high-temperature environments. Its compact 56 frame size makes it ideal for use in a range of settings, including commercial and industrial facilities, and it can be mounted in any position. With a service factor of 1, this motor delivers consistent performance and is a cost-effective choice for many applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance.
- Single Phase, Capacitor-Start motor design for efficient and reliable operation.
- Continuous duty cycle capability for consistent performance in demanding applications.
Top product applications:
- Pumps for residential and commercial use
- Fans for industrial and commercial HVAC systems
- Conveyors and other material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on April 9, 2026 4:35am UTC
Category: Motors
