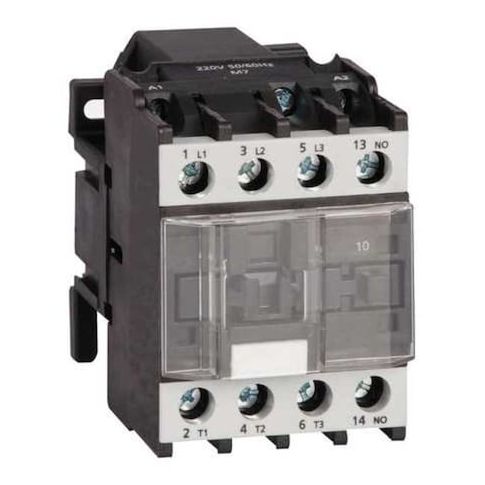

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing MPN:6EAV5
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a versatile 3-pole switching device designed for use in various industrial and commercial applications. Rated for operation with a 24V AC coil, this unit features non-reversing operation and includes 1 normally open auxiliary contact, making it ideal for use in applications requiring simple switching and control. Its compact size and lightweight design make it easy to install and integrate into existing systems. With CSA and UL Listed certifications, this contactor meets strict safety standards, ensuring reliable and efficient performance in a wide range of applications, including HVAC, lighting, and industrial automation.
Top product features:
- Non-reversing operation allows the product to control devices in a one-way direction, preventing accidental switching.
- 1 normally open auxiliary contact provides an additional control point for external devices or circuits.
- Rated for operation within a 50-60 Hz frequency range, ensuring compatibility with standard household and commercial electrical systems.
Top product applications:
- Control of a 1 hp, 120V AC motor in a residential HVAC system
- Control of a 5 hp, 240V AC pump in a commercial irrigation system
- Control of a 10 hp, 480V AC compressor in a large industrial refrigeration unit
The DAYTON IEC Magnetic Contactor is an IEC-style, 3-pole switching device rated for operation with a 24 V AC coil. It features non-reversing operation and includes 1 normally open auxiliary contact. The unit does not include an embedded surge suppressor or enclosure
- overall dimensions are approximately 3.4 inches (depth) x 1.81 inches (height) x 1.81 inches (width).
Specifications:
- - Embedded Surge Suppressor: This product does not include an embedded surge suppressor
- verify suitability for your application accordingly.
- - Enclosure: This product does not include an enclosure
- ensure proper installation to meet safety requirements as applicable to your environment.
- - Frequency: Rated for operation within approximately 50–60 Hz.
- - Full Load Amps - Inductive: Rated for use at currents up to specified full load amps under typical conditions
- actual performance may vary based on application specifics.
- - Full Load Amps - Resistive: Rated for use at currents up to specified full load amps under typical conditions
- actual performance may vary based on application specifics.
- - Full Load Current - Inductive: Rated for use at currents up to specified full load amps under typical conditions
- actual performance may vary based on application specifics.
- - Full Load Current - Resistive: Rated for use at currents up to specified full load amps under typical conditions
- actual performance may vary based on application specifics.
- - HP @ 1 Phase - 120V: 1 hp
- - HP @ 1 Phase - 230V: 3 hp
- - HP @ 1 Phase - 240V: 3 hp
- - HP @ 3 Phase - 208V: 5 hp
- - HP @ 3 Phase - 240V: 5 hp
- - HP @ 3 Phase - 480V: 10 hp
- - HP @ 3 Phase - 575V: 15 hp
- - Height: 1.81 in
- - Width: 1.81 in
- - Depth: 3.4 in
- - Reversing Capability: Non-Reversing
- - Standards: CSA, UL Listed
- - Item: IEC Magnetic Contactor
- - Number of Auxiliary Contacts: 1
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.40
- Package Height: 2.00
- Package Weight: 0.50
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
