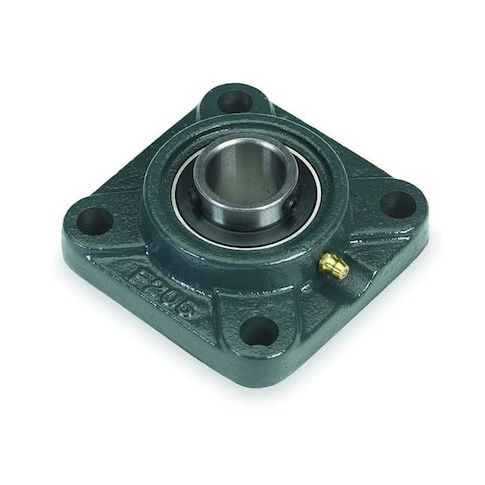

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 5/8 in Dia, Cast Iron, Set Screw MPN:3FCX1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3150217
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 5/8 in Dia, Cast Iron, Set Screw
This 4-bolt flange bearing from Dayton is designed for high-performance applications in highly dusty and dirty environments. The alloy steel bearing insert provides excellent durability and resistance to wear, while the single sealed closure keeps lubricant in and contaminants out. With a maximum speed of 7,300 RPM and a maximum temperature of 200°F, this bearing is suitable for use in a variety of applications, including heavy machinery, industrial equipment, and power transmission systems. Its compact design and fixed expansion type make it ideal for use in confined spaces and high-speed operations.
Top product features:
- Single sealed closure to protect the bearing from contaminants
- Fixed expansion type to maintain a consistent bearing position
- Radial ball bearing insert for reduced friction and improved load-carrying capacity
Top product applications:
- Conveyor systems in highly dusty and dirty environments
- Automotive manufacturing equipment
- Industrial machinery requiring high-speed operation
4 Bolt Flange Bearing, Back Side to Center Width 0.591 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 5/8 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Single Sealed, Expansion Type Fixed, For Environment Highly Dusty and Dirty, Housing Material Cast Iron, Housing Type Square, Included Bearing WJB UC202-10 Insert Bearing, Lubricant Material Chevron SRI 2, NLGI #2 Equivalent, Maximum Speed 7,300 RPM Grease, Maximum Temperature 200 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.80
- Package Height: 1.40
- Package Weight: 1.30
Product info last updated on February 27, 2026 9:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
