Three-Phase General Purpose Motor, 5 HP, 215T Frame, 208-230/460V AC Voltage, 1175 Nameplate RPM

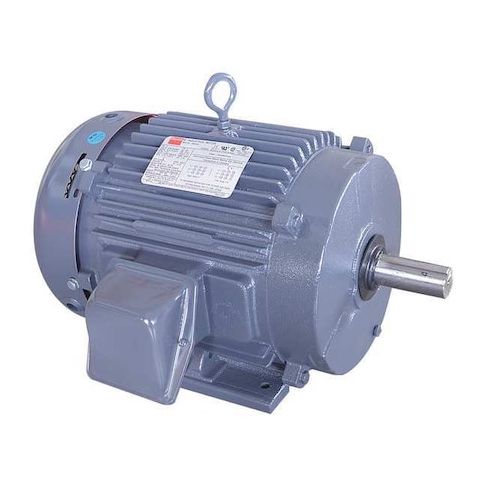

This 5 HP three-phase general purpose motor from Dayton is designed for a wide range of applications requiring continuous duty. Featuring a totally enclosed fan-cooled motor enclosure and rigid base mounting, it provides reliable operation in demanding environments. With a nameplate RPM of 1175 and a maximum ambient temperature of 40°C, this motor is suitable for use in industrial settings, manufacturing facilities, and other high-temperature applications. Its high efficiency and durable construction make it an ideal choice for applications requiring consistent performance and minimal downtime.
Top product features:
- Three-phase design for efficient operation in industrial settings
- Totally enclosed fan cooled motor enclosure for reduced heat and increased safety
- Ball motor bearings for smooth and durable operation
Top product applications:
- Industrial Conveyors
- Pumps and Piping Systems
- Manufacturing Machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1175, Frame 215T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.8/6.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 18.50
- Package Height: 16.00
- Package Weight: 221.00
