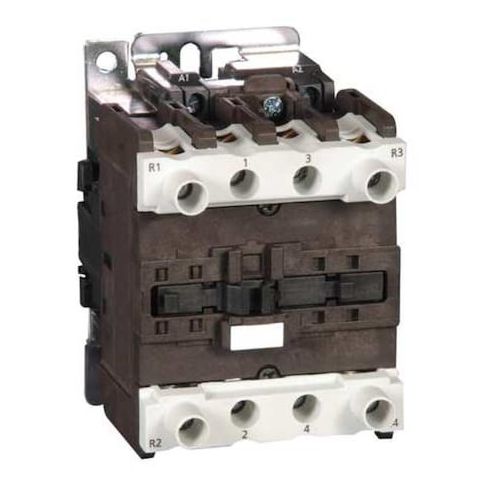

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 4 P, Non-Reversing, Screw MPN:6EAZ3

• DAYTON IEC Magnetic Contactor is a 4-pole, non-reversing IEC-style device rated for switching power within specified parameters. It is designed for operation with a 240 V AC coil, with screw-terminal connections, and is provided without an enclosure. The main contacts are configured as 2 normally closed and 2 normally open (2NC/2NO), and the product configuration indicates no auxiliary contacts.

  - Action: Non-Reversing

• - Coil Voltage: 240 V AC
• - Contactor Style: IEC
• - Number of Poles: 4
• - Terminal Connection Type: Screw
• - Enclosure: No Enclosure
• - Frequency: Intended for use within the specified frequency ranges of 50 and 60 Hz
• - Full Load Amps (Inductive/Resistive): Rated for full load currents up to 50 A (inductive) and 70 A (resistive)
• - HP Ratings: Suitable for applications requiring up to the specified horsepower ratings at respective voltages, within rated conditions
• - Reversing: No
• - Special Features: Main Contact Configuration 2NC/2NO
• - Auxiliary Contacts: No Auxiliary Contacts
• - Standards: CSA, UL Listed
• - NEMA Enclosure Rating: No Enclosure
• - Dimensions (WxHxD): Width 2.95 in
• Height 2.95 in
• Depth 4.6 in
• - Hz: Intended for use within the specified frequency ranges of 50 and 60 Hz
