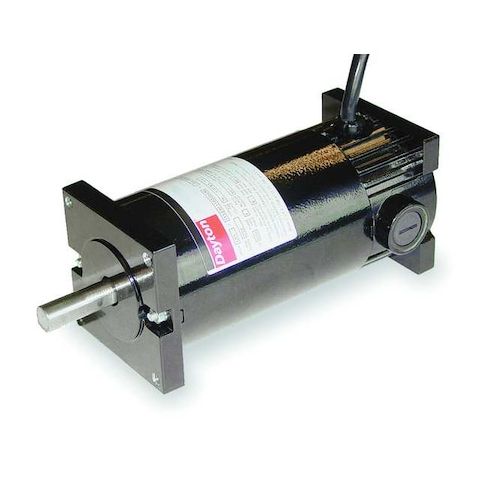

DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 180VDC MPN:1Z851E
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3112216
DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 180VDC
This high-performance DC motor from Dayton is designed for a wide range of applications, including industrial automation, robotics, and medical devices. With a continuous duty cycle and a compact totally enclosed nonventilated (TENV) design, this motor is ideal for use in harsh environments. Its high torque output and efficient operation make it a great choice for applications where precise control and reliability are critical. The motor's universal mounting position and CW/CCW rotation capability make it easy to integrate into existing systems. Its compact size and high performance make it an excellent choice for a variety of applications.
Top product features:
- Totally Enclosed Nonventilated (TENV) design provides protection from environmental factors
- Non-Standard Frame allows for unique installation and mounting options
- Continuous duty cycle enables operation at a consistent speed and torque level
Top product applications:
- Robotics and Automation
- Medical Equipment
- Industrial Control Systems
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet DC, 1/6 HP, Nameplate RPM 1,800, Voltage 180V DC, 0.86 A Full Load Amps, Non-Standard Frame, Full Load Torque 5.8 in-lb, Replacement For 1Z851, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Motor Mounting Position Universal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 5.60
- Package Height: 5.80
- Package Weight: 10.75
