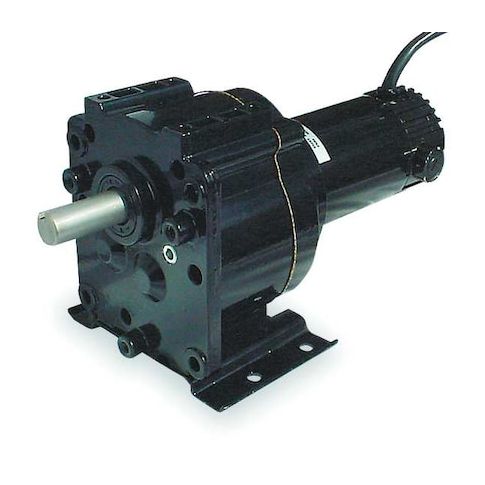

DC Gearmotor, 250 in-lb Max. Torque, 8.7 RPM Nameplate RPM, 90V DC Voltage MPN:6A194
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3097166
DC Gearmotor, 250 in-lb Max. Torque, 8.7 RPM Nameplate RPM, 90V DC Voltage
This DC gearmotor offers a reliable and efficient solution for a variety of applications, including material handling, packaging, and automation systems. Its 250 in-lb maximum torque and 8.7 RPM nameplate speed make it ideal for applications requiring precise control and low-speed operation. The motor's permanent magnet design and gear ratio of 208:1 provide high torque and low speed, while its totally enclosed nonventilated enclosure protects against dust and moisture. Suitable for use in any angle, this gearmotor is perfect for applications where space is limited, such as in robotics, medical devices, and food processing equipment.
Top product features:
- Totally Enclosed Nonventilated Motor Enclosure protects the motor from dust and debris.
- Permanent Magnet DC Motor provides reliable and consistent performance.
- 208:1 Gear Ratio allows for high torque output at a low RPM, enabling precise and controlled motion.
Top product applications:
- Automotive Lifts
- Conveyor Systems
- Medical Equipment
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 8.7 RPM, Maximum Torque 250 in-lb, Overhung Load Capacity 150 lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Gear Ratio 208:1, Input Horsepower 1/20 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Roller and Thrust Balls on Case
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 8.20
- Package Height: 6.40
- Package Weight: 10.45
Product info last updated on February 4, 2026 6:13am UTC
Category: Motors
