Three-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 3485 Nameplate RPM MPN:4GYZ7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3081267

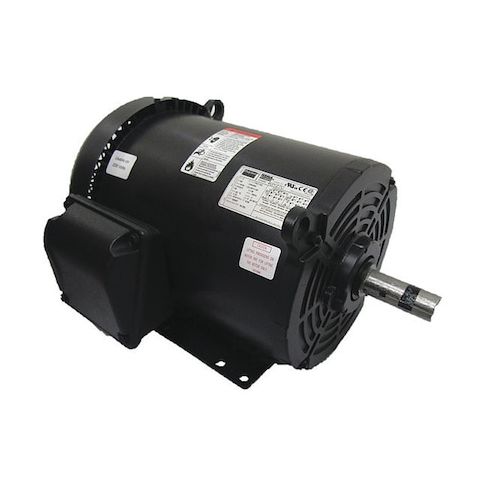

Three-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 3485 Nameplate RPM
The Dayton 10 HP Three-Phase General Purpose Motor is a reliable and efficient solution for a wide range of industrial applications. With a nameplate RPM of 3485 and a voltage rating of 230/460V AC, this motor is suitable for use in factories, warehouses, and other facilities that require high-torque power. Its totally enclosed fan cooled design and rigid base mounting type make it easy to install and maintain, while its 1.15 service factor and 91% nominal efficiency ensure optimal performance and energy savings. Ideal for applications such as conveyor systems, pumps, and fans, this motor is a cost-effective choice for businesses that demand reliability and efficiency.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial automation systems
- Pumps and pumping systems
- Material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3485, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.9/12.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.25
- Package Width: 23.25
- Package Height: 13.75
- Package Weight: 145.00
Product info last updated on February 21, 2026 1:56pm UTC
Category: Motors
