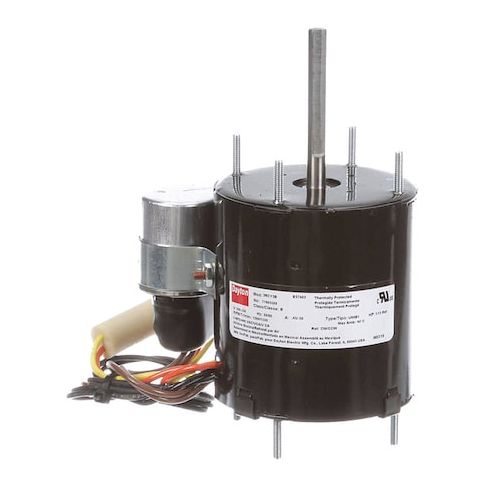

HVAC Motor, 1/15 HP, 1550 rpm, 208-230V, 3.3 MPN:71903588M
HVAC Motor, 1/15 HP, 1550 rpm, 208-230V, 3.3
This Dayton HVAC motor is a reliable and efficient solution for a wide range of applications, including residential and commercial heating and cooling systems. With a 1/15 horsepower rating and 1550 rpm, it provides a quiet and smooth operation. Its compact 3.3 frame design makes it easy to install in tight spaces. The motor's permanent split capacitor design and totally enclosed air-over enclosure ensure long-lasting performance and protection from dust and moisture. Suitable for continuous duty cycles, it can operate in temperatures up to 40°C, making it a versatile choice for various HVAC applications.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from environmental factors.
- Permanent Split Capacitor motor design enables efficient and reliable operation.
- Continuous duty cycle allows for non-stop operation in a variety of applications.
Top product applications:
- Duct Fans
- Portable Air Conditioners
- Cabin Fans
HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.5-0.45 A Full Load Amps, 3.3 Frame, Output Watts 49 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 50.40
- Package Width: 29.40
- Package Height: 31.80
- Package Weight: 25.80
Product info last updated on February 24, 2026 2:08pm UTC
Category: Motors
