Definite Purpose Magnetic Contactor, 24V AC, 1 P, Non-Reversing, 1 Phase, Screw MPN:6GNP5
Free Shipping
In Stock

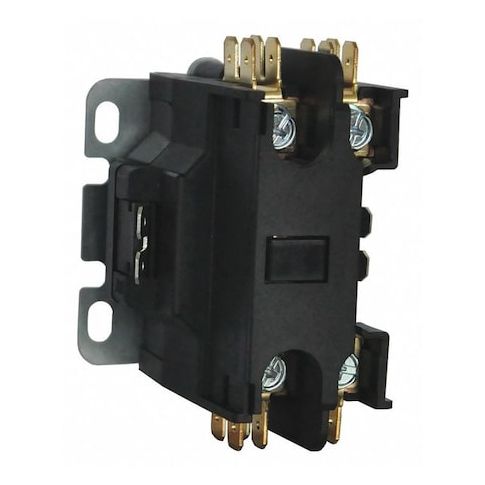

The Dayton 6GNP5 Definite Purpose Magnetic Contactor is an industrial-grade electrical device designed to control power flow in heavy-duty applications. Perfect for managing and automating machinery operations in sectors like HVAC, data processing, and manufacturing, this tool allows for precise control and reliability. With its non-reversing action, 24V AC coil voltage, and durable silver cadmium oxide contacts, it ensures efficient and long-lasting operation. Rated for up to 200,000 electrical operations and 500,000 mechanical operations, this contactor is ideal for applications requiring high reliability and durability, such as controlling inductive loads up to 30A and resistive loads up to 40A.
Top product features:
- Operates as a non-reversing contactor, maintaining a constant current flow direction.
- Rated for operation at a coil voltage of 24V AC.
- Constructed with Silver Cadmium Oxide contacts for improved conductivity, durability, and resistance to corrosion.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The DAYTON - 6GNP5 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: The contactor functions as non-reversing where the current flow direction remains constant.
- Coil Voltage: Rated for operation at a coil voltage of 24V AC.
- Contact Material: Constructed with Silver Cadmium Oxide contacts that influence conductivity, durability, and resistance to corrosion.
- Electrical Operating Durability: Electrical operating durability is rated for up to 200,000 operations under standard conditions.
- Frequency: Rated for operation within the specified frequency range of 50/60 Hz
- Full Load Amps-Inductive & Resistive: Rated for continuous control of inductive loads up to 30A and resistive/heating loads up to 40A.
- Horsepower @ Single Phase -120V & 240V AC : Rated for controlling power output on single-phase systems at both specified voltages, with limits set by the manufacturer's specifications.
- Mechanical Operating Durability: Mechanical life expectancy is rated for up to500,000 operations under standard conditions."
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 2.70
- Package Height: 2.40
- Package Weight: 0.50
