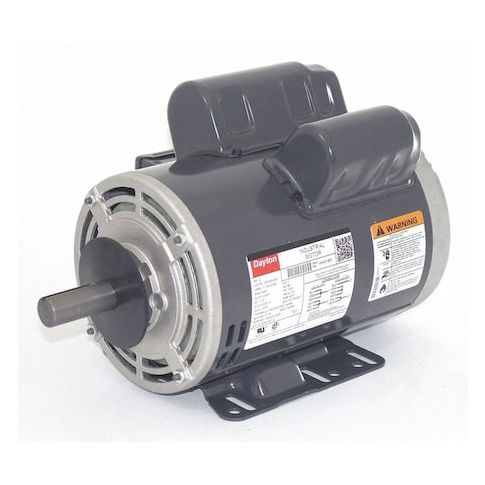

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145T Frame MPN:6K631
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3061502
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145T Frame
This 2 hp single-phase motor is designed for general purpose applications and features a capacitor-start/run design for efficient operation. With a nameplate RPM of 3,450 and a voltage range of 115/208-230V AC, it is suitable for a variety of uses, including industrial equipment, pumps, and fans. The motor's open drip-proof enclosure and rigid base mounting make it easy to integrate into existing systems. Its continuous duty cycle and 1.15 service factor ensure reliable operation in demanding environments. Ideal for use in manufacturing, HVAC, and other applications where a reliable and efficient motor is required.
Top product features:
- Capacitor-start/run design for improved motor efficiency and reliability
- Single-phase operation for easy installation and reduced complexity
- Open drip-proof motor enclosure design for increased protection against dust and moisture
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.5/9.3-8.6 A, 145T Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 4, 2026 8:13am UTC
Category: Motors
