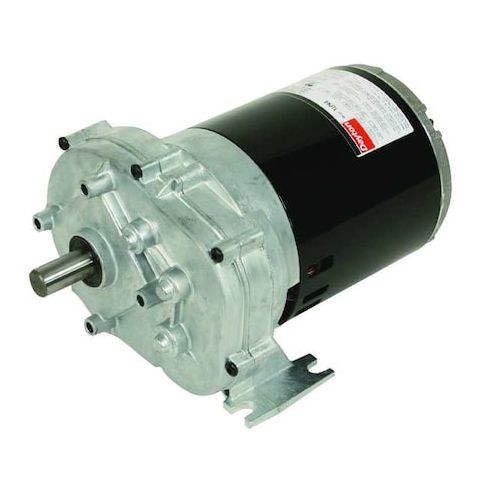

AC Gearmotor, 600 in-lb Max. Torque, 6 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
This AC gearmotor is ideal for applications requiring low speed and high torque, such as conveying, lifting, and material handling systems. With a maximum torque of 600 in-lb and a nameplate speed of 6 RPM, it can efficiently power equipment in various industries. The motor's open dripproof enclosure and Class B insulation ensure reliable operation in harsh environments. Its continuous duty class and Class 9 gear rating provide long lifespan and precise speed control. Suitable for CW/CCW rotation, it can be mounted at any angle, making it a versatile solution for a wide range of applications.
Top product features:
- Operates at a maximum torque of 600 in-lb
- Has a gear ratio of 286:1 for high torque output
- Can rotate continuously in both clockwise and counterclockwise directions
Top product applications:
- Conveyor systems for low-speed, high-torque applications
- Pumps and blowers in industrial settings
- Automated machinery and equipment in manufacturing facilities
AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Open Dripproof, Nameplate Speed 6 RPM, Maximum Torque 600 in-lb, Overhung Load Capacity 300 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 286:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.10
- Package Width: 9.70
- Package Height: 9.00
- Package Weight: 23.77
