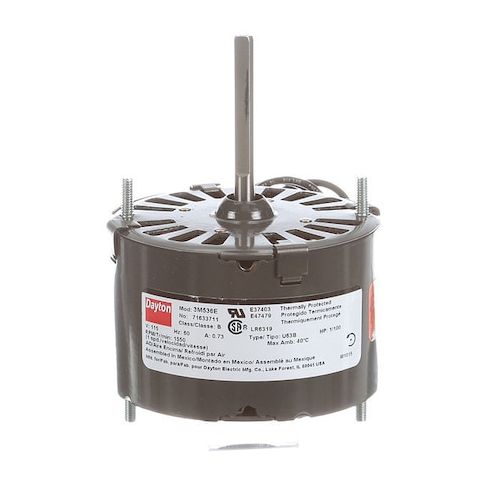

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3 MPN:71633711M
HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3
This compact 1/100 HP HVAC motor from Dayton is designed for single-phase applications, offering a reliable and energy-efficient solution for a range of uses. Suitable for continuous operation in ambient temperatures up to 40°C, this motor is ideal for use in residential and commercial HVAC systems, as well as in industrial applications where space is limited. Its shaded pole design and open air over enclosure make it a versatile and cost-effective choice for a variety of settings, including air handlers, fan coils, and other HVAC equipment.
Top product features:
- Single Phase Operation
- Shaded Pole Motor Design
- Continuous Duty Cycle Capability
Top product applications:
- Residential air conditioning units
- Commercial refrigeration systems
- Small industrial fans and blowers
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.7 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 6.70
- Package Height: 3.60
- Package Weight: 2.10
