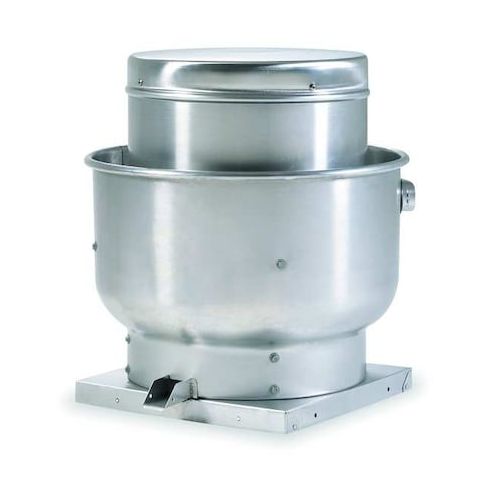

Centrifugal Upblast Roof Exhaust Fan: Belt Drive, Less Drive Pack, 36 in Wheel, 320 RPM to 690 RPM MPN:4YY22
Free Shipping
In Stock
This centrifugal upblast roof exhaust fan is designed for roof curb mounting and vertical air discharge, ideal for exhausting kitchen air. With a belt-driven backward-inclined aluminum wheel, it provides high airflow capacity, ranging from 8,631 to 18,611 cfm at 0.0 in static pressure. The fan's speed range of 320 to 690 RPM ensures efficient operation within specified temperature and static pressure limits. Suitable for commercial kitchens, restaurants, and food service facilities, this fan helps maintain a safe and healthy environment by removing grease, moisture, and heat. Its durable aluminum construction and regreasable pillow block bearings ensure long-lasting performance and easy maintenance.
Top product features:
- Centrifugal upblast roof exhaust fan with backward-inclined wheel.
- Airflow range specified from 8,631 to 18,611 cfm at 0.0 in static pressure.
- Fan speed range specified from 320 to 690 RPM.
Top product applications:
- Exhausting kitchen air within specified airflow, temperature, and static pressure limits
- Exhausting air from commercial or industrial kitchens with high heat and moisture loads
- Providing vertical air discharge for roof curb mounting applications
This item is a centrifugal upblast roof exhaust fan configured for roof curb mounting and vertical air discharge. It uses a belt-driven backward-inclined aluminum wheel housed in a spun aluminum enclosure. The unit is supplied without a motor or drive package and is intended for exhausting kitchen air within specified airflow, temperature, and static pressure limits.
Key Features:
- Fan Type: Centrifugal upblast roof exhaust fan with backward-inclined wheel.
- Airflow Capacity: Airflow range specified from 8,631 to 18,611 cfm at 0.0 in static pressure.
- Drive Configuration: Belt drive design
- motor and drive package not included.
- Wheel and Housing Materials: Aluminum wheel with spun aluminum housing.
- Operating Limits: Maximum static pressure specified at 1-3/4 in wc and maximum inlet air temperature up to 300°F.
- Speed Range: Fan speed range specified from 320 to 690 RPM.
- Bearings: Regreasable pillow block bearing configuration.
- Mounting: Roof curb mounting with a square base measuring 46 in x 46 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 65.00
- Package Width: 65.00
- Package Height: 58.70
- Package Weight: 396.00
